Name: Estação de trabalho PLC com interface HID, kit de sensores e atuadores, sistema de tapete transportador e equipamento didático SCADA, bancada de trabalho educativo, equipamento para formação elétrica.
Brand: MY SHOP
SKU: ZE3438
Availability: InStock
Rating: 5 (1 reviews)

Description

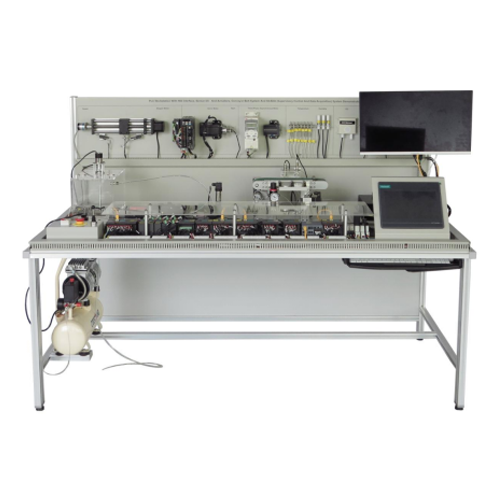

Estação de trabalho PLC ZE3438 com kit de sensores de interface HID e atuadores para sistema de correia transportadora e equipamento didático SCADA, bancada de trabalho educacional para formação elétrica.
1. Equipment Introduction
1.1 Overview
The training device covering industrial systems has excellent reliability, can reduce the possibility of failure, and has high real-time and fast response capabilities. It also provides concise ladder diagrams to simplify the operation and help users learn the relevant knowledge and corresponding skills of industrial automation systems.
1.2 Features
(1) It has a good safety protection system.
(2) The experimental circuits and devices are fully configured and can be used in combination to complete the practical training content of various subjects.
2. Technical parameters
Working voltage: AC220±10%, 50Hz
Size: 1930mm*1000mm*1360mm
Weight: <205kg
Working conditions: ambient temperature 10℃～30℃, relative humidity <75% (25℃)

3. Component list and detailed introduction
3.1 Main part

No	Name
1	Air pump
2	System main power switch
3	Emergency stop switch
4	Working rocker
5	Water pump control system
6	Stepper motor control system
7	Three-phase asynchronous motor module
8	Thermal resistor (RT)/thermocouple (TT)
9	Three-way temperature and humidity sensor
10	Sensor module
11	Upper computer
12	Touch screen
13	Mouse
14	Keyboard
15	Conveyor system
16	Module group

3.2 Component List

No	Name
1	Pump control system
2	Stepper motor control system
3	Three-phase asynchronous motor module
4	Sensor module
5	Conveying system
6	Module group
7	Weighing module
8	ZigBee wireless communication module
9	Programmable 24V power supply
10	Adjustable 24V power supply

3.3 Accessories

No	Name
1	Power cord
2	CD
3	Siemens license

3.4 Component Introduction

No	Name
1	PLC host (A1)
2	485 communication module (A2, A3, A4)
3	Sub-channel module (A5)
4	Weighing module (A6)
5	Thermocouple module (A7)
6	Relay input and output module (A8)
7	8-channel thermal resistance input module (A9)
8	4-channel input and 4-channel output analog module (A10)
9	8-channel input and 8-channel output relay switch module (A11)
10	8-channel input and 8-channel output PNP switch module (A12)
11	Siemens SL-1200 module (A13)
12	8-channel analog input module (A14)

4. Experiment list
Experiment 1 Three-phase asynchronous motor variable frequency speed regulation experiment
Experiment 2 Servo motor variable frequency speed regulation experiment
Experiment 3 Stepper motor control material block automatic reciprocating experiment
Experiment 4 ZigBee wireless communication module operation experiment
Experiment 5 Water pump operation experiment (manual mode or PID mode)
Experiment 6 Conveyor operation experiment (manual or automatic)
